Asus P6X58D-E review

A competent, well-rounded board that’s overshadowed by a more versatile rival

Mike Jennings
1 Sep 2010
4
Price when reviewed
159

The Asus P6X58D-E is one of the firm's top-end motherboards – at least before the enthusiast Republic of Gamers range forces prices into the stratosphere – and, as such, you’d expect it to boast a pretty beefy specification.

It certainly has the fundamentals covered. The LGA 1366 socket accepts a wide range of Intel Core i7 processors, from the likes of the original i7-920 to the six-core, 32nm i7-980X, and it sits beside Intel’s X58 chipset.

Six DIMM sockets cater for up to 24GB of 2,000MHz memory, and the top half of the board sports a sensible design: the trio of coolers aren’t bulky enough to impede large CPU heatsinks, an eight-pin power plug should keep overclockers happy, and the RAM slots aren’t too close to the processor socket either.

It’s business as usual elsewhere. The three PCI Express x16 slots, theoretically, support a trio of graphics cards running in either Nvidia SLI or ATI CrossFireX, but slot speed could be an issue: you’ll have to choose from two full speed slots and the third running at just x1, or a single slot at x16 and the last two running at x8. There’s also a single PCI Express x1 slot and a pair of standard PCI sockets.

SATA/600 continues its march towards the mainstream, with a pair of these future-proofed ports included alongside six slower SATA/300 sockets. Helpfully, two are positioned perpendicular to the board, with the rest sitting parallel to the black PCB.

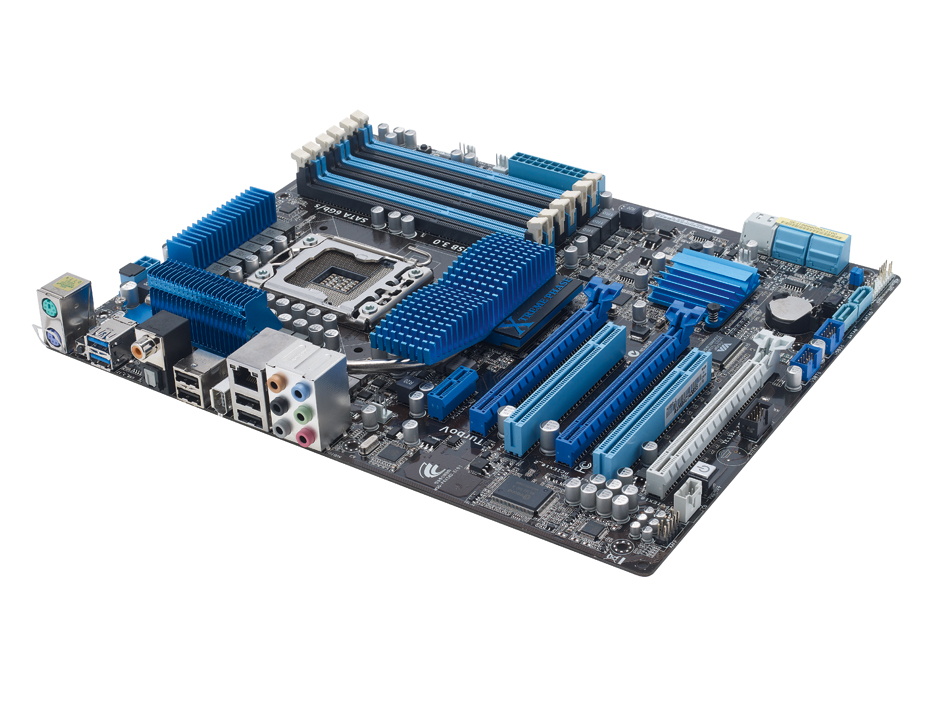

Asus P6X58D-E

Elsewhere there’s a pair of USB 2 headers, a FireWire connector, and five fan connectors, although only two – including the CPU fan jumper – boast variable speed. There are a couple of nods to enthusiasts, with an onboard power button and three jumpers that enable advanced processor and memory overclocking features in the BIOS.

The X58 chipset lacks native support for USB 3, but with the help of a discrete NEC controller two USB 3 ports are included here. They’re joined by four USB 2 ports, FireWire, Gigabit Ethernet, six 3.5mm sockets, a pair of S/PDIF outputs, two PS/2 ports and a clear CMOS button.

It’s a fine selection, but the Gigabyte GA-X58A-UD3R also offers a pair of USB 3 ports, and adds to those with six USB 2 ports and a pair of eSATA sockets.

The Gigabyte pulls ahead in other areas. There’s an additional PCI Express x16 slot, four SATA/600 ports on the board, and it can now be found for around £128 exc VAT – slightly cheaper than the Asus.

The Asus P6X58D-E ticks plenty of boxes, then, but if you’re looking to build a Core i7-based system, it isn’t the board we’d advise you buy. The Gigabyte GA-X58A-UD3R is the one to choose at this price, boasting a broader range of features and more versatile range of connections.

Details

Motherboard form factorATX
Motherboard integrated graphicsno

Compatability

Processor/platform brand (manufacturer)Intel
Processor socketLGA 1366
Motherboard form factorATX
Memory typeDDR3
Multi-GPU supportyes

Controllers

Motherboard chipsetIntel X58
South bridgeIntel ICH10R
Number of Ethernet adapters1
Wired adapter speed1,000Mbits/sec
Graphics chipsetN/A
Audio chipsetRealtek HD Audio

Onboard Connectors

CPU power connector type8-pin
Main power connectorATX 24-pin
Memory sockets total6
Internal SATA connectors6
Internal PATA connectors1
Internal floppy connectors1
Conventional PCI slots total2
PCI-E x16 slots total3
PCI-E x8 slots total0
PCI-E x4 slots total0
PCI-E x1 slots total1

Rear ports

PS/2 connectors2
USB ports (downstream)4
FireWire ports1
eSATA ports0
Optical S/PDIF audio output ports1
Electrical S/PDIF audio ports1
3.5mm audio jacks6
Parallel ports0
9-pin serial ports0
Extra port backplane bracket ports0

Diagnostics and tweaking

Motherboard onboard power switch?yes
Motherboard onboard reset switch?no
Software overclocking?yes

Accessories

SATA cables supplied2
Molex to SATA adaters supplied0
IDE cables supplied1
Floppy cables supplied0
