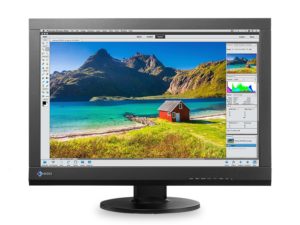

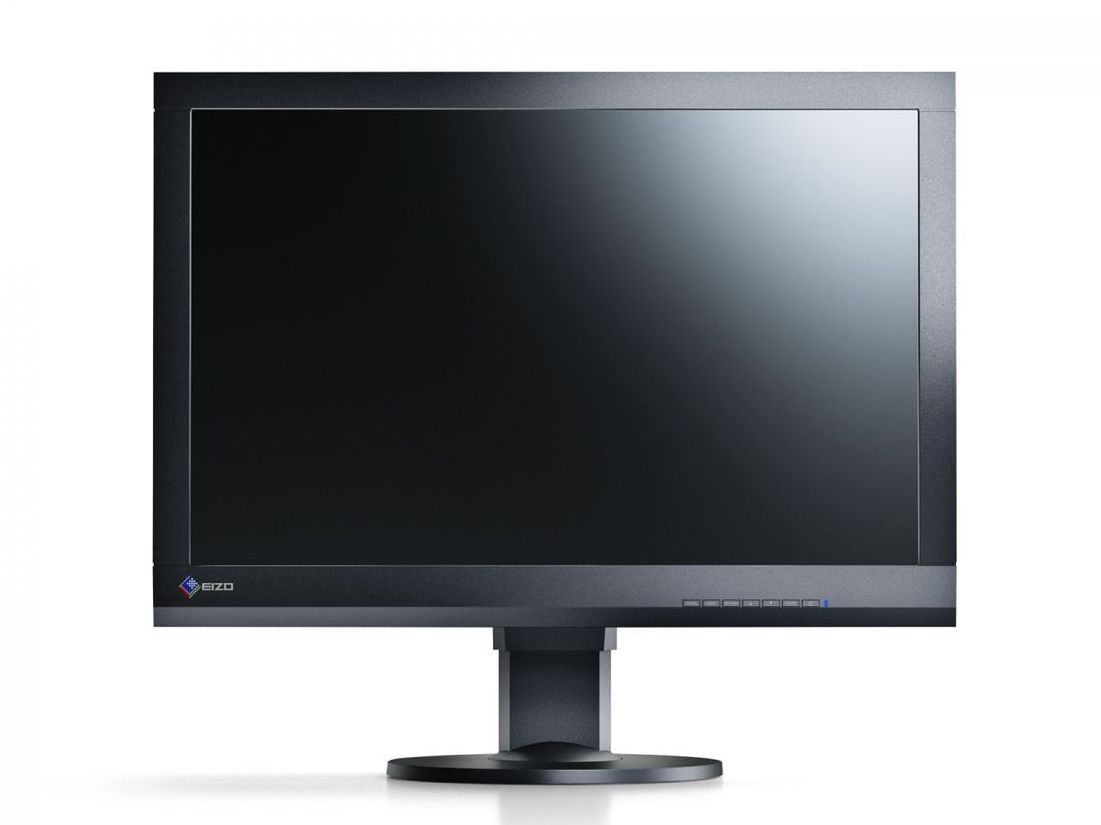

Eizo ColorEdge CS240 review

Eizo ticks almost every box with the 24.1in ColorEdge CS240 – but the quality still comes at a price

5
Price when reviewed
564

For those who care about colour accuracy, Eizo’s ColorEdge range of monitors has been stretching overdrafts and flexing credit cards for the past 11 years. However, the latest addition to the range, the ColorEdge CS240, aims to be a little kinder to your wallet.

Eizo ColorEdge CS240 review: the numbers game

In these days of 4K monitors and high-DPI smartphones, the CS240’s 24.1in, 1,920 x 1,200 panel sounds rather ordinary. It’s anything but, and Eizo has spared no expense in the areas that matter. Its IPS panel is lit with a wide-gamut GB-R LED backlight, something of a rarity at this price, and this allows it to cover a claimed 99% of the Adobe RGB colour space. The panel also supports full 10-bit colour input via the DisplayPort and HDMI inputs (as ever, the DVI connection is limited to 8-bit colour), and the real clincher is that hardware calibration is on the cards too – that is, as long as you don’t mind shelling out for a third-party colorimeter such as the £160 X-Rite i1 Display Pro.

Eizo ColorEdge CS240 review: display testing

You really don’t need to worry about buying that X-Rite right away, however, as the ColorEdge CS240’s image quality is stunning from the get-go. Firing up the monitor’s factory-calibrated Adobe RGB mode saw the Eizo turn in an absolutely immaculate set of results. We measured the panel as covering 99.7% of the Adobe RGB colour space, absolutely bang on Eizo’s claims, and colour accuracy was sublime, with the panel achieving an average Delta E of only 0.45. The 743:1 contrast ratio is pretty good by professional monitor standards, too, and the only (minor) disappointment was that the colour temperature was a little way off of the 6,500K ideal. We measured it at 6,801K.

Switching to the CS240’s sRGB mode revealed an equally impressive set of numbers. The calibration covered 99.3% of the sRGB colour space, and did so with a highly colour-accurate average Delta E of 0.46. Contrast remained almost identical at 743:1, and colour temperature was just a little high at 6,825K. In both cases, though, we managed to get colour temperature within a whisker of 6,500K by tweaking the colour temperature settings in the onscreen menu.

The backlighting is superb. Colours look solid and even across every inch of the display, with not a hint of mottling, and the Eizo passed our uniformity test with flying colours. Measured across 15 points on the screen, the brightness deviated by an average of 1.9% – the biggest variation was in the panel’s top-right corner, and even then it was was only 3% dimmer than the centre. Still not impressed? Compare the Eizo's figures to those of Apple's iMac with 5K Retina display and you might be - the Apple's backlight varies by as much as 14%.

Eizo ColorEdge CS240 review: features & build

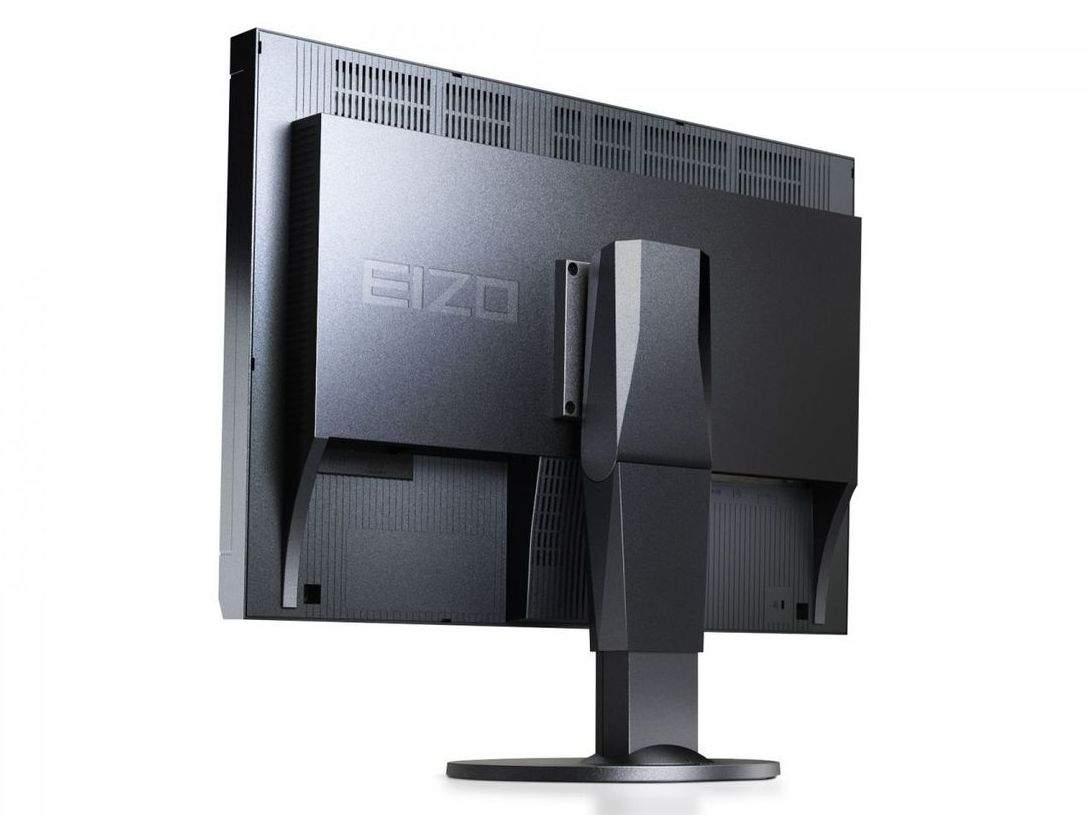

That kind of performance will set many budding photographers and designers frothing at the gills, and rightly so, but the ColorEdge CS240 also nails all the essentials. The adjustable stand smoothly rises up and down by 130mm, tilts around into portrait mode, and there’s barely a hint of wobble whichever way you contort it. The build quality makes the CS240 feel a cut above the average 24in monitor. Connectivity is excellent, with HDMI, DVI and DisplayPort inputs plus a two-port USB 2 hub.

Eizo ColorEdge CS240 review: verdict

The Eizo ColorEdge CS240 isn’t cheap – you could buy two Dell UltraSharp U2414H IPS monitors and have change left over for the price of one – but this is the first time we’ve seen a truly professional-class monitor at anywhere near this price. For £564, Eizo has served up immaculate image quality and all the essential features we’d expect for a fraction of the cost of its flagship ColorEdge CG277. If you’re after a professional-class monitor for a little less, the ColorEdge CS240 is as good as it gets.

Price when reviewed
564(£470 exc VAT)

Details

Image quality 6

Main specifications

Screen size 24.1in
Aspect ratio 16:10
Resolution 1920 x 1200
Screen brightness 350cd/m2
Contrast ratio 743:1
Horizontal viewing angle 178 degrees
Vertical viewing angle 178 degrees

Connections

DVI inputs 1
HDMI inputs 1
DisplayPort inputs 1
HDCP support yes
Upstream USB ports 1
USB ports (downstream) 2

Accessories supplied

Other cables supplied Power, DisplayPort, USB

Image adjustments

Brightness control? yes
Contrast control? yes

Ergonomics

Swivel angle 270 degrees
Height adjustment 130mm
Pivot (portrait) mode? yes

Dimensions

Dimensions 575 x 245 x 423mm (WDH)
