Intel Atom review

With so many processors already on the market, you’d be forgiven for wondering why there’s such a fuss about this one.

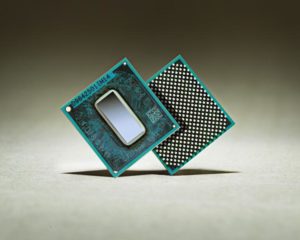

The answer is that the Intel Atom (formerly known by the codename “Silverthorne”) is a whole new type of processor – a tiny, ultra-low-power embedded package that delivers the full capabilities of an x86 desktop CPU.

Read the full review of the first Atom-based PC here

Click here for a first look at Acer’s Atom-based Aspire One

That means it can run Windows, multi-task with HyperThreading and even make a decent fist of multimedia applications with SSE3 support. It’ll work with a 945G chipset, DDR2 RAM and all the components we take for granted.

Yet it does all this with a thermal design power of around 2W – incredibly, less than three per cent that of an everyday Core 2 Duo. Average power consumption is promised to be in the milliwatt range, with idle draw as low as 30mW.

This groundbreaking marriage of performance and efficiency means that Atom-powered phones and PDAs could run the same applications as desktop machines, while maintaining the battery life consumers demand. And Atom-powered PCs can take on less demanding desktop and server roles and slash power requirements.

Atomised

As you’d expect, the Atom is a more basic chip than a Core 2. It’s only a single-core processor – though the forthcoming “Diamondville” Atoms will effectively combine two chips into a dual-core package. L2 cache is modest too, though not overly mean, at 512KB.

But this simplicity, combined with Intel’s small-scale 45nm manufacturing process, means the chips are physically very small. Indeed, Intel boasts that, at 25mm, the Atom is the world’s smallest processor. That in turn brings down the cost of silicon, so Atoms are affordable too.

It comes in two families. For mobile internet devices, the low-end Z500 and Z510 models run at 800MHz and 1.1GHz respectively, on a 400MHz front side bus, and sell for just $45. The 1.33GHz Z520 pushes the FSB up to 533MHz and sees the price rise to $65, while the 1.6GHz Z530 comes in at $95.

Alas, clearly anticipating that the greatest demand will be for the most powerful processor, Intel has stuck a hefty price premium on the top-end 1.86GHz Z540, launching it at $160 despite its small increase in clock speed over the Z530 and identical FSB.

But there’s also a 200-series family for desktops and laptops. The N270 and 230 both run at 1.6GHz, with 512KB of L2 cache and a 533MHz front side bus in a 22mm² package.

The difference is that the N270 is intended for laptops such as the MSI Wind and the upcoming Eee PC update, and hence supports Intel’s Enhanced SpeedStep Technology, with the deeper C4 sleep state. It has a 2.5W TDP, rather than the 2W of the Z5-series. The 230 is for desktops, and has a slightly higher TDP of 4W.

Explosive scores?

We ran tests in Vista on the latter, the 1.6GHz desktop Atom 230 with 2GB of RAM, and as anticipated despite the hysterical hype, performance isn’t going to set the world alight.

Intel’s CTO Justin Rattner is on record as saying the performance is about the same as the ‘Banias’ generation Pentium M that formed the heart of the first-generation Centrino platform back in 2003.
And we wouldn’t disagree: in our benchmarks it performed pretty similarly to a Celeron-based Eee PC, with an overall score of 0.32 underlining the fact that this is primarily an embedded device rather than a home PC processor.

It didn’t do too badly in the individual tests, far outperforming the Eee in graphical applications, for example (0.34 to the Eee’s 0.28). But it’s clear that multitasking stretches the single-core Atom too far – our multiapps test took a whopping 38 minutes to complete, compared to an already painful 26 on the Eee.

Similarly, our Office test – which opens Word, Excel, Access and PowerPoint simultaneously – took the Atom more than 20 minutes, despite its HyperThreading; even the VIA C7-D-based MSI Titan 700 managed that in less than 13 minutes. It’s worth remembering, though, that the Eee and MSI had XP installed, while our Atom tests were run in Vista, which usually performs 5-10% slower.

But that comparison with the Eee is an important one, as that system’s ultra-low-voltage Celeron M has a TDP of 5W, compared to just 2-4W for the Atom, and can’t begin to match the 30mW idle power consumption.

If we look to more powerful processors, the 1.9GHz Athlon 64 X2 BE-2300 in the recently reviewed Very PC Treeton, has a TDP of 45W – more than 20 times that of the Atom – yet only manages to boost that benchmark score to 0.80.

Conclusion

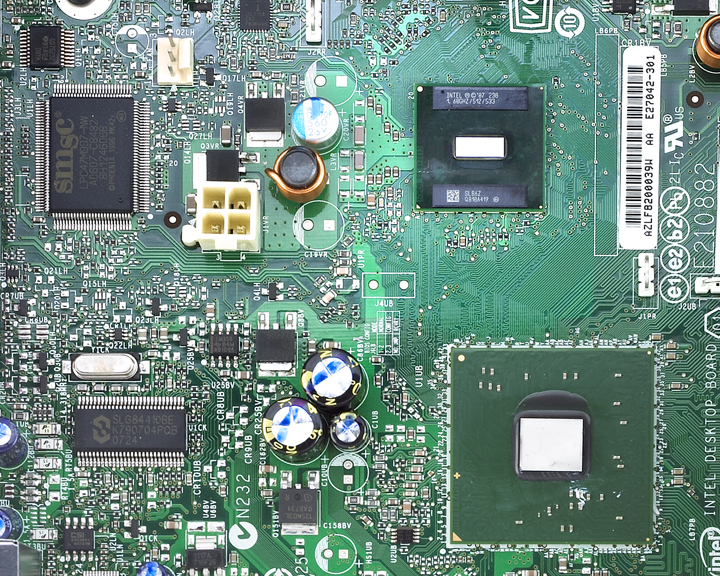

Before you get your wallet out, don’t plan to simply drop an Atom into your existing PC. The chips are surface-mounted, so you’ll need a dedicated motherboard. Intel clearly isn’t marketing Atom as a consumer processor, and our results bear that out.

Rather, Intel’s major focus for the Atom is the mobile market. The company has been touting its vision of the “mobile internet device” or MID for over a year, and with Atom it plans to make that a reality.

Indeed, we’re already seeing the first signs of this. Today, Acer announced the Aspire One, which is based on an Atom processor.

Expect to see many more Atom-based devices over the coming months. And, naturally, we’ll be certain to review the most interesting products here.
