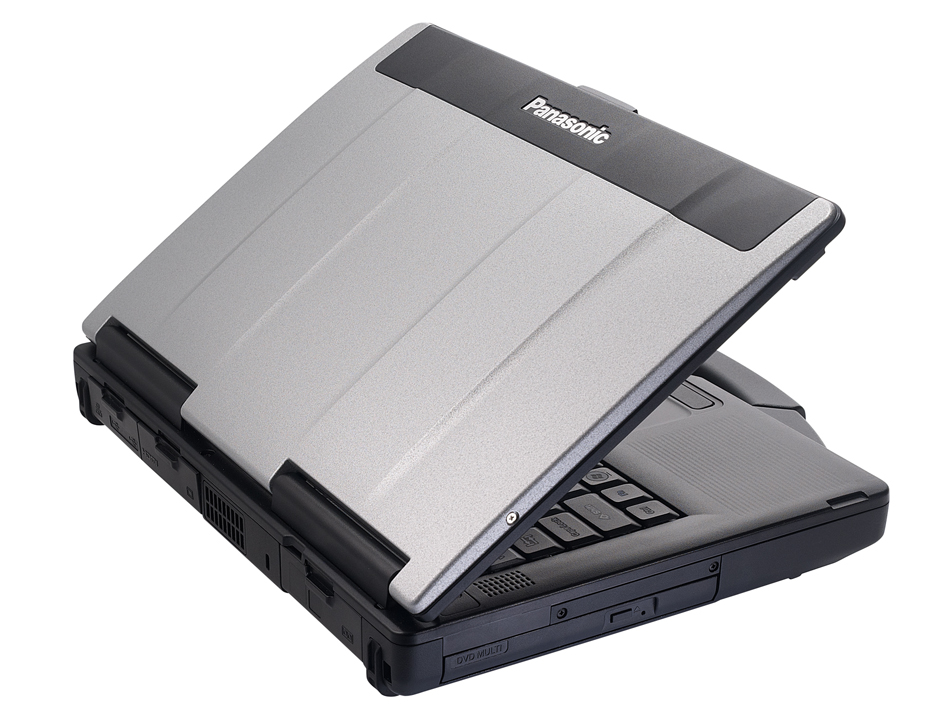

We often talk about build quality when it comes to laptops, but Panasonic’s Toughbooks are a breed apart. Put simply, the semi-ruggedised CF-53 is the laptop equivalent of an army all-terrain vehicle: a 54mm magnesium-thickened chassis weighing 2.6kg; rubber seals over all interfaces; and a hard disk mounted in shock-absorbing polymers. You can drop it from up to 76cm and splash water over the keyboard, safe in the knowledge the Toughbook won’t even blink.

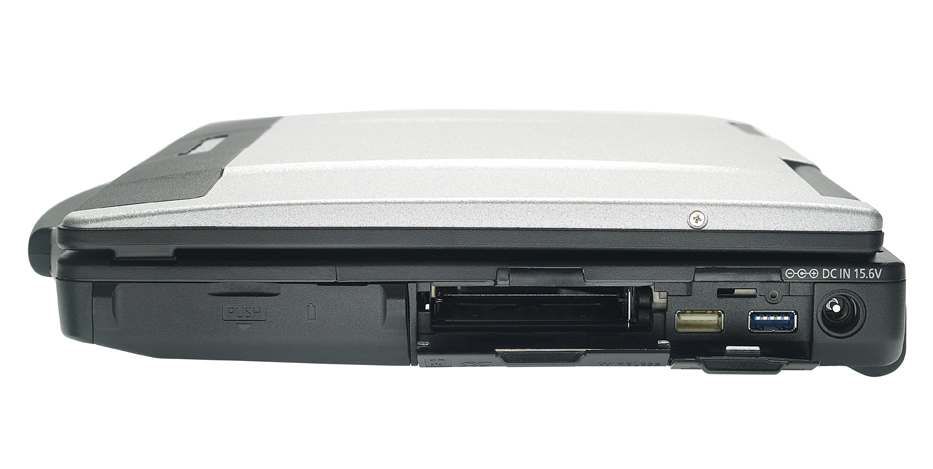

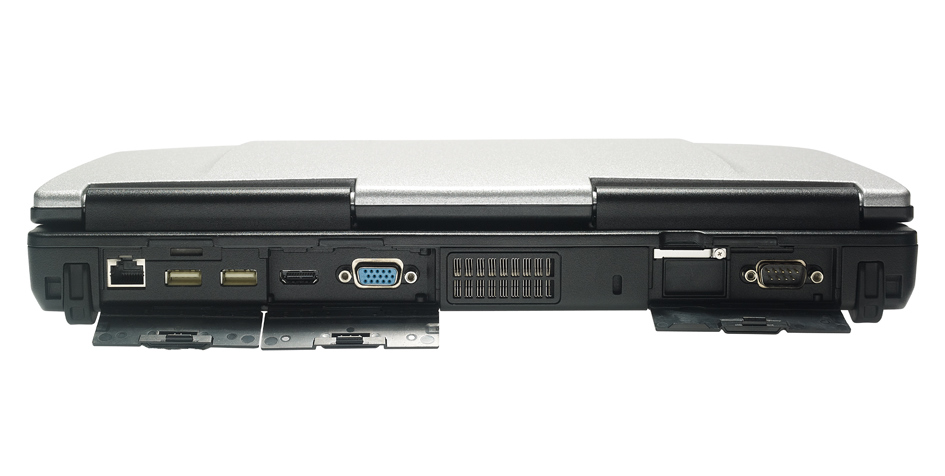

Using it feels like puzzling over a retro toy, with one flap on the right edge hiding a USB 2 and USB 3 port, and another masking ExpressCard/54, PC Card and SD slots, and a switch for the dual-band 802.11agn Wi-Fi. A third slides down to provide access to the removable battery – which we’ll come to later – while the rear has doors hiding two more USB 2 ports, Ethernet, HDMI and D-SUB outputs, and even a serial port.
A DVD drive sits on the left edge, with a 320GB hard disk in an easily removable SATA caddy; there’s even a heated alternative available for use in extreme environments.

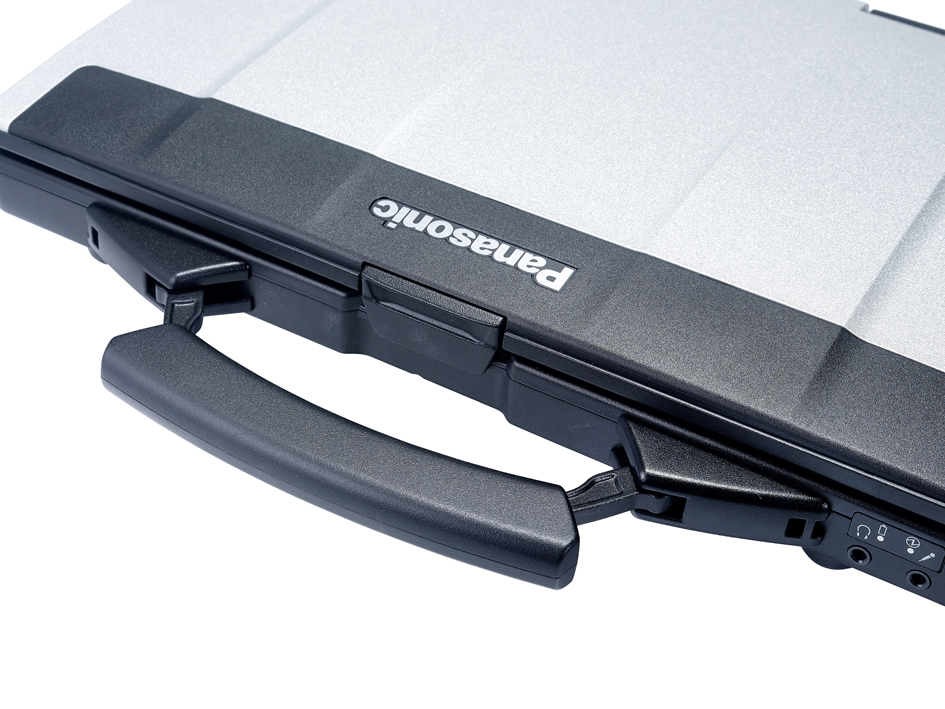

Then there’s the retractable carrying handle on the front edge, which minimises the impact of the weight, and the connector on the base that accepts Panasonic’s port replicator. Whether it’s back at a desk or being slung around with its integrated carry handle, the CF-53 is ready for anything.

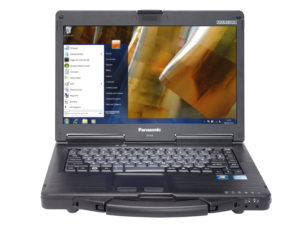

The 14in 1,366 x 768 display is matte and more than a bit grainy compared to the pin-sharp glossy screens we’re used to, but the screen is perfectly usable – we measured its brightness at 276cd/m2 – and it has a protective layer over it. If a traditional display just doesn’t cut it, Panasonic also sells the CF-53 with a touchscreen.
Warranty | |
---|---|
Warranty | 3yr on-site |
Physical specifications | |
Dimensions | 345 x 286 x 54mm (WDH) |
Weight | 2.600kg |
Travelling weight | 3.0kg |
Processor and memory | |
Processor | Intel Core i5-2520M |
Motherboard chipset | Intel HM65 Express |
RAM capacity | 4.00GB |
Memory type | DDR3 |
SODIMM sockets free | 0 |
SODIMM sockets total | 2 |
Screen and video | |
Screen size | 14.0in |
Resolution screen horizontal | 1,366 |
Resolution screen vertical | 768 |
Resolution | 1366 x 768 |
Graphics chipset | Intel HD Graphics 3000 |
Graphics card RAM | N/A |
VGA (D-SUB) outputs | 1 |
HDMI outputs | 1 |
S-Video outputs | 0 |
DVI-I outputs | 0 |
DVI-D outputs | 0 |
DisplayPort outputs | 0 |
Drives | |
Capacity | 320GB |
Hard disk usable capacity | 298GB |
Spindle speed | 5,400RPM |
Internal disk interface | SATA/300 |
Hard disk | Hitachi Travelstar 5K320 |
Optical disc technology | DVD writer |
Battery capacity | 6,750mAh |
Replacement battery price inc VAT | £0 |
Networking | |
802.11a support | yes |
802.11b support | yes |
802.11g support | yes |
802.11 draft-n support | yes |
Integrated 3G adapter | no |
Bluetooth support | no |
Other Features | |
Wireless hardware on/off switch | yes |
Wireless key-combination switch | no |
Modem | no |
ExpressCard34 slots | 0 |
ExpressCard54 slots | 0 |
PC Card slots | 0 |
USB ports (downstream) | 3 |
FireWire ports | 0 |
PS/2 mouse port | no |
9-pin serial ports | 1 |
Parallel ports | 0 |
Optical S/PDIF audio output ports | 0 |
Electrical S/PDIF audio ports | 0 |
3.5mm audio jacks | 2 |
SD card reader | yes |
Memory Stick reader | no |
MMC (multimedia card) reader | no |
Smart Media reader | no |
Compact Flash reader | no |
xD-card reader | no |
Pointing device type | Touchpad |
Audio chipset | realtek HD Audio |
Integrated microphone? | yes |
Integrated webcam? | no |
Camera megapixel rating | N/A |
TPM | no |
Fingerprint reader | no |
Smartcard reader | no |
Carry case | no |
Battery and performance tests | |
Battery life, light use | 10hr 46min |
3D performance (crysis) low settings | 22fps |
3D performance setting | Low |
Overall Real World Benchmark score | 0.67 |
Responsiveness score | 0.88 |
Media score | 0.66 |
Multitasking score | 0.46 |
Operating system and software | |
Operating system | Windows 7 Professional 64-bit |
OS family | Windows 7 |
Recovery method | Burn own recovery discs |
